0.8mm Prepainted Galvalume Steel Coil PPGL SGC400 Prepainted Zinc

Jiangsu Liyingshun Metal Products Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 0.8mm Prepainted Galvalume Steel Coil PPGL SGC400 Prepainted Zinc from wholesalers

    Buy cheap 0.8mm Prepainted Galvalume Steel Coil PPGL SGC400 Prepainted Zinc from wholesalers
    • Buy cheap 0.8mm Prepainted Galvalume Steel Coil PPGL SGC400 Prepainted Zinc from wholesalers
    • Buy cheap 0.8mm Prepainted Galvalume Steel Coil PPGL SGC400 Prepainted Zinc from wholesalers
    • Buy cheap 0.8mm Prepainted Galvalume Steel Coil PPGL SGC400 Prepainted Zinc from wholesalers

    0.8mm Prepainted Galvalume Steel Coil PPGL SGC400 Prepainted Zinc

    Ask Lasest Price
    Brand Name : Liyingshun
    Model Number : SGCC SGCH SGC340
    Certification : ISO/CE/PVOC/SONCAP
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 30000Ton/month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    0.8mm Prepainted Galvalume Steel Coil PPGL SGC400 Prepainted Zinc

    Product inforamation

    Cheap Factory Price Ppgl Steel Coil Ppgi Galvanized Roofing Sheetprepainted Aluzinc Steel Coil For Houses


    The prepainted steel sheet in coil is a product obtained by subjecting a hot-dipped galvanized steel sheet, and galvalume steel
    sheet, or an aluminum sheet to a surface chemical treatment (coating), followed by baking and curing.
    * The total thickness of the pre-panted galvanized steel coil is composed of the base steel - coating -primer - top paint -
    protective layer thickness. The top paint thickness is 10-25μm, and the back paint thickness is 5-20μm. The thinner the base
    steel thickness, the higher the price of the ppgi steel coil, because the processing cost becomes higher.
    * Usually, the paint coating material is polyester (PE) and the color of the back paint is white grey. The color can be
    customized according to the RAL color card or customer samples. Special patterns can be made, such as wood grain, flower print,

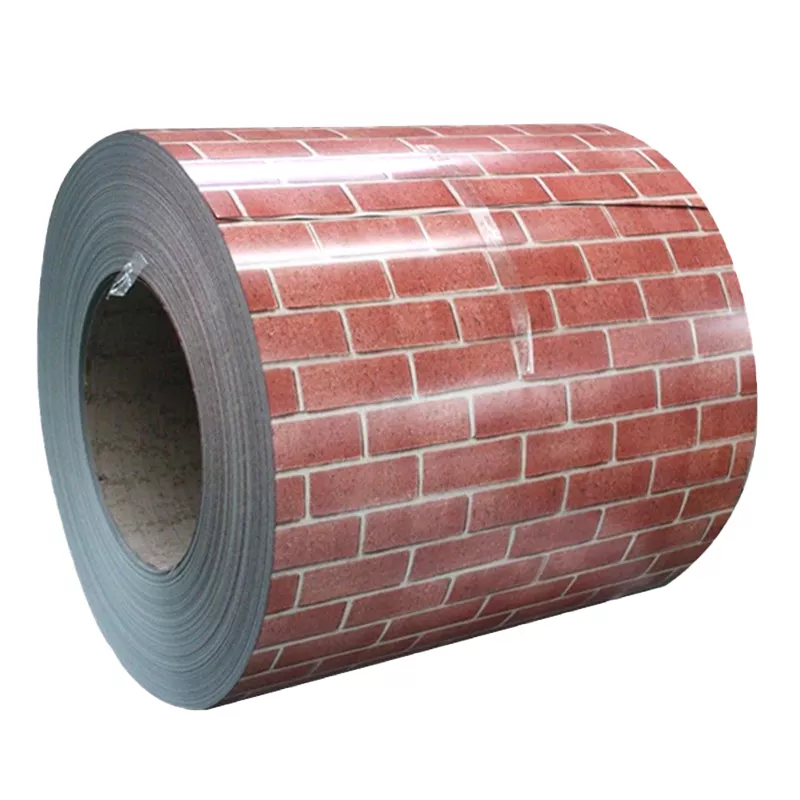

    camouflage, brick.
    1) PPGI is also known as prepainted galvanized steel coil and color coated steel coil, with a hot dip zinc coated steel sheet
    substrate.
    2) PPGL is also known as prepainted galvalume steel coil, with a galvalume steel sheet as a substrate.
    Product name
    Prepainted Galvanized Steel Coil
    Material
    DX51D
    Zinc
    20-120g
    Thickness
    0.13-0.8 mm
    Width
    600-1250 mm
    Color
    all RAL color , as client's request
    Paint
    top paint : 10-30mic back paint: 5-25 mic
    Paints
    PE, SMP, HDP, PVDF
    T bend
    < 3T
    Pencil hardness
    >2H
    Coil ID
    508/610mm
    Coil weight
    3-8tons
    Surface
    glossy and matt
    Glossy
    30%-90%
    Package
    standard export package (Detailed picture is as follows)
    Hardness
    soft (normal), hard, full hard(G300-G550)
    HS code
    721070
    Country of origin
    China
    Business type
    Supplier and manufacturer

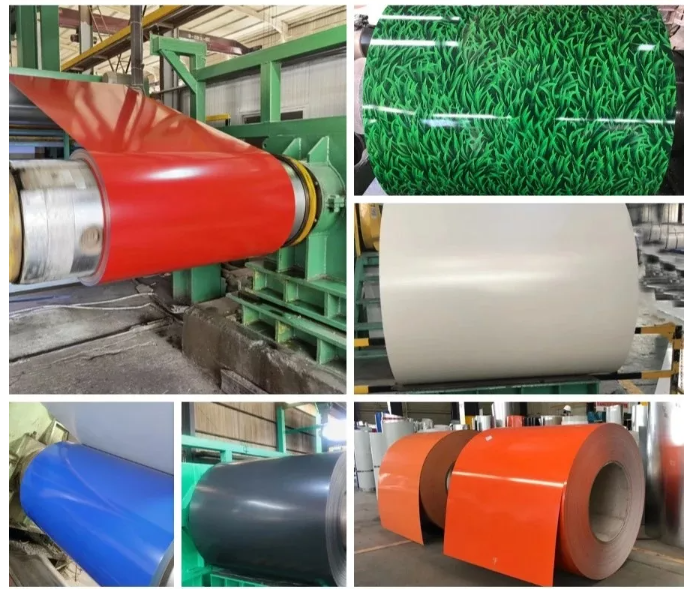

    Product Show


    Product process


    Package

    Package3 layers of packing
    1. Inside is kraft paper
    2. Middle is water plastic film
    3. Ouside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve
    RemarksInsurance is all risks and accept the third party test
    Loading PortTianjin/Qingdao/Shanghai Port

    Inspection
    Technology
    Hot dip,plating
    Special Purpose
    Rustproof
    Length
    Custom made
    Wall Thickness
    Custom made
    Types Of
    PPGI
    Standard
    GB8918-2006
    Application
    Industrial buildings, steel structures and civil facilities
    Alloy Or Not
    Yes
    Model
    Color steel plate
    Colour
    Custom made
    Material
    Au Zi Steel
    Application
    FAQ
    Q1:Will you delivery the goods on time?
    A1:Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
    Q2:How could you guarantee your products?
    A2:Each piece of products is manufactured by certified workshops, inspected by Linxu piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
    Q3:Do you provide samples ? is it free or extra ?
    A3:The sample could can provide for customer with free,but the courier freight will be covered by customer account.
    Q4:Do you accept the third party inspection?
    A4:Yes absolutely we accept.
